World Series Modular Controller

Name: World Series Modular Controller
Availability: BackOrder

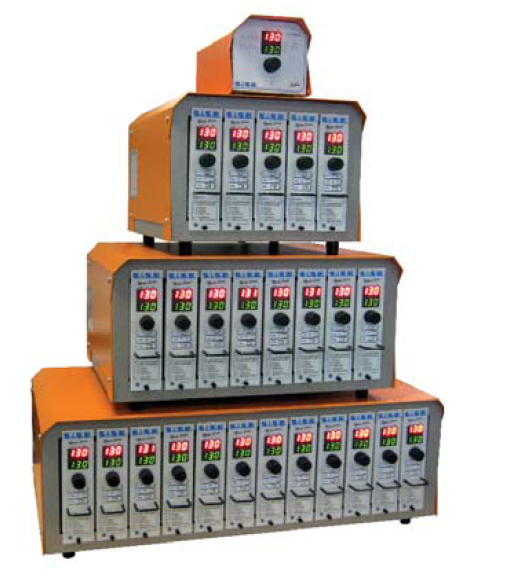

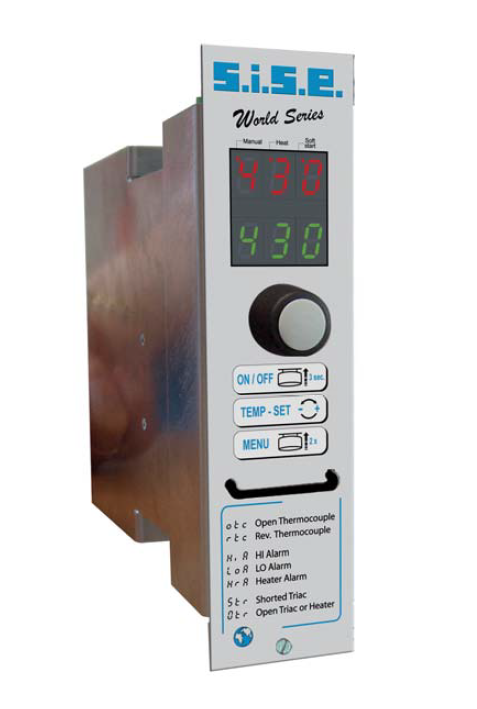

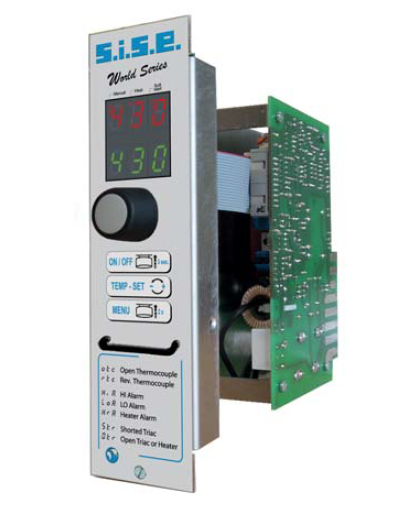

The SISE “World Series” represents a microprocessor-based single-zone temperature controller meticulously crafted for hot runner applications, seamlessly compatible with all standard mainframes. This controller boasts a distinctive user-friendly “Click and Rotate” control button, along with two 3-digit LED displays in red and green, as well as discrete indicators for Manual Mode, Heating Power, and Soft Start mode.

Standard Features:
• SISE Permanent Auto-Tuning Software
• Type J or K Thermocouple input
• Temperature displayed in °C or °F
• Heater Output percentage monitoring
• Triac and load protection with two high-speed fuses (15 Amp)
• High and Low temperature alarms
• Current monitoring
• Thermocouple Short and Reversed Alarms
• SoftStart feature (Graduated phase angle control)

Advanced Features:
• Adjustable setpoints
• Automatic transfer from Auto to Manual mode in case of Thermocouple failure (User selectable)
• Intelligent Anti-Arcing system (Allows safe removal of the controller, Automatically detected if mainframe is equipped)
• Heater monitoring and alarm (Detects if heater is partly damaged)
• Load protection by built-in relay in case of triac short or error condition
• Controller locking function (user selectable)
• Selectable controller state on restart
