Venturi Loader – AV Series

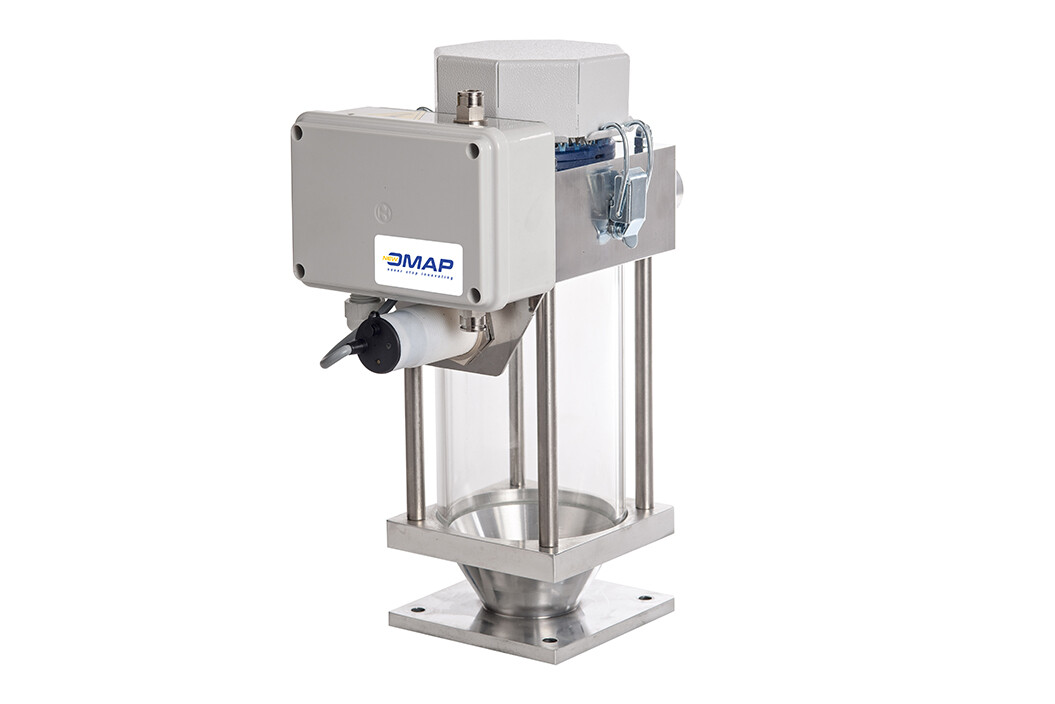

The New OmapVenturi loader represents one of the simplest and most effective types of material handling equipment. These innovative devices utilise compressed air through a venturi system to create the vacuum necessary for drawing plastic granule materials into the air stream. Once in the air stream, the granules are efficiently conveyed to a designated receiver. The combination of vacuum levels and airflow capabilities makes venturi loaders particularly well-suited for short-distance applications, typically covering distances of 5 metres or less. When supplied with adequate compressed air, these loaders can transport a surprising volume of material, making them ideal for operations requiring throughputs of less than 40 kg/hr.

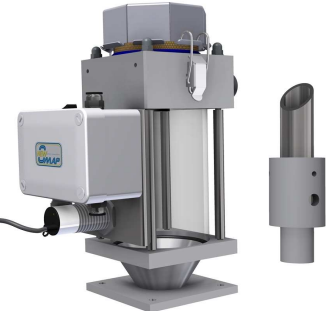

The venturi loader operates on the principle of the Venturi effect, which is harnessed through its suction system. The venturi nozzle is securely attached to the suction probe and connects directly to the compressed air supply. As compressed air flows through the nozzle, it generates a vacuum that first draws the granules into the system before pushing them into a separator cyclone equipped with a filter to vent the air.

One of the standout features of this extremely compact loader is its ability to transport virgin materials in a non-dusty granule form. This design makes the venturi loader an excellent choice for various applications, including the processing of plastic materials in manufacturing environments.

Overall, venturi loaders offer a reliable and efficient solution for moving materials over short distances, ensuring minimal dust generation and maximum performance. Their simplicity, combined with effective operation, makes them a valuable asset in any production setting where efficient material handling is required.
