TriSolve Temperature Control Solutions

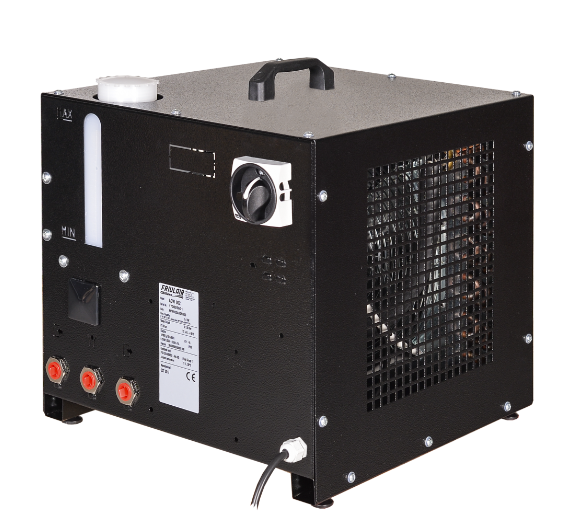

Compact/Micro Chillers

Name: Compact/Micro Chillers
Availability: BackOrder

Cooling Capacity: 1kW – 2kW

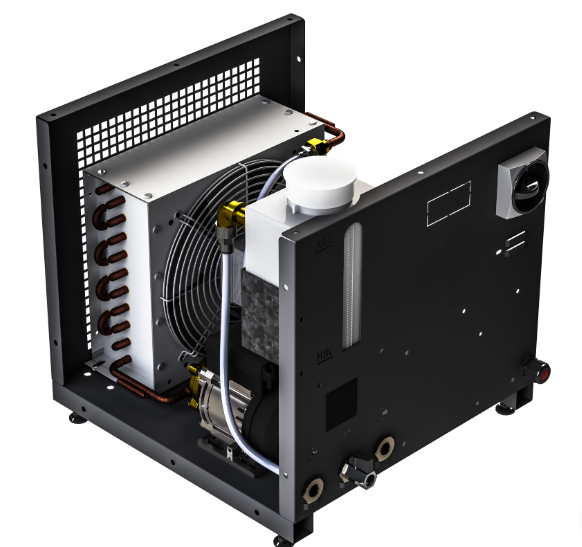

ACW is a range of air-water coolers meticulously crafted for welders, spindles, and various industrial applications that demand process water at a temperature higher than the ambient surroundings.

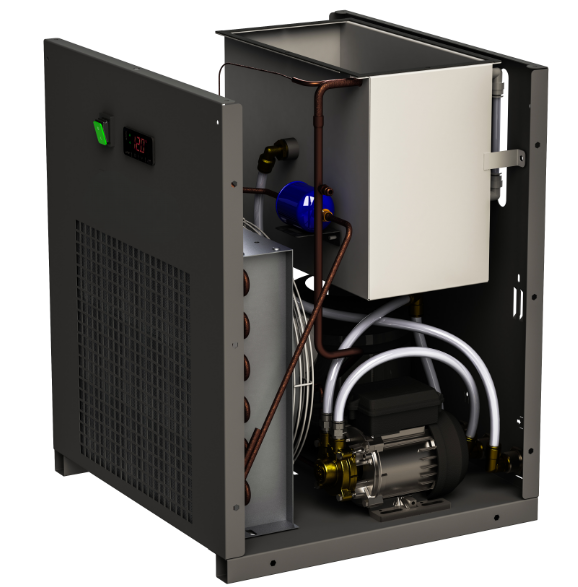

QBS is a compact chiller tailored to complement the small precision chiller range. This collection comprises two models explicitly designed to optimise refrigeration capacity within an exceptionally compact unit.

Features of ACW:

On/Off fans
Tubes and fins heat exchangers
Non ferrous water tank
Peripheral pump
Water level indicator
Disconnect switch
Options:
- Wheel Kit
- 400v/2ph/50hz Version
- Auto adaptive electronic control configuration

Features of QBS:

Reciprocating compressor
Copper tubes and fins evaporator immersed in an atmospheric water tank
Copper tubes and aluminium fins condenser
Axial fan
Dehydrator filter
Capillary tube expansion device
Thermally insulated stainless steel tank
Peripheral pump
Water level indicator
Water filling point
Steel and powder coated construction making them suitable for indoor installations.
Microprocessor control allows the chiller to reach the outlet water setpoint, control the pump & compressor and manages the alarms
Options:
- Wheel Kit
- Auto adaptive electronic control configuration
